Some additional notes below to compliment the official KB article for users new to Wireguard on how to configure the Windows client.
See the official KB with instructions for the router config: https://www.draytek.com/support/knowledge-base/7661#DrayOS5_section
In the example below we have a DrayOS5 router configured with a LAN address of 192.168.60.1 where you want to be able to access the network remotely (split tunnel).
Note the Wireguard client still needs to be installed, even if you are only intending on using the Draytek SmartVPN client. https://www.wireguard.com/install/
Clear text so you can copy/paste into your Wireguard client and update where necessary.
NOTE: As of writing, the Draytek SmartVPN client doesn't parse comments properly when importing a config file. Either remove the comment lines manually (every line starting with #) or use the Wireguard client to automatically remove them for you.

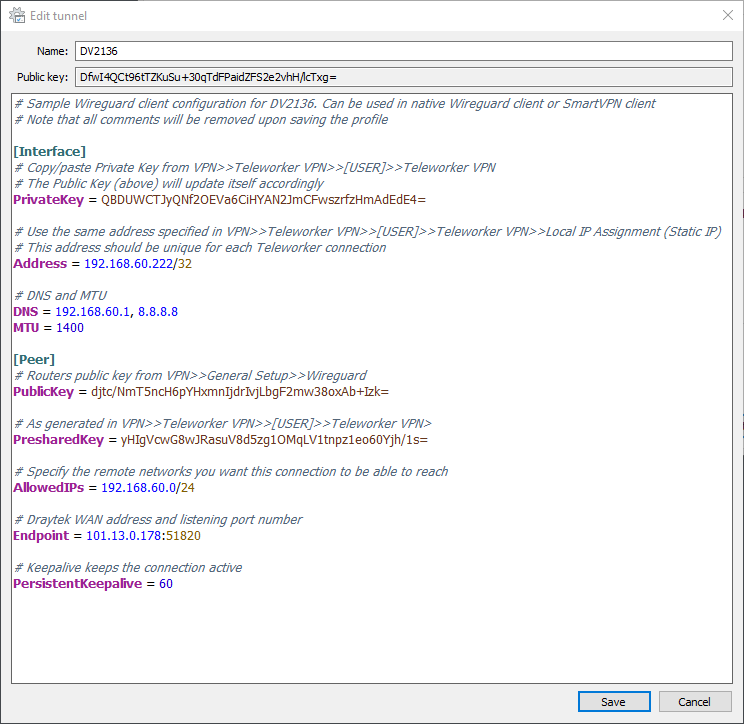

# Sample Wireguard client configuration for DV2136. Can be used in native Wireguard client or SmartVPN client # Note that all comments will be removed upon saving the profile [Interface] # Copy/paste Private Key from VPN>>Teleworker VPN>>[USER]>>Teleworker VPN # The Public Key (above) will update itself accordingly PrivateKey = QBDUWCTJyQNf2OEVa6CiHYAN2JmCFwszrfzHmAdEdE4= # Use the same address specified in VPN>>Teleworker VPN>>[USER]>>Teleworker VPN>>Local IP Assignment (Static IP) # This address should be unique for each Teleworker connection Address = 192.168.60.222/32 # DNS and MTU DNS = 192.168.60.1, 8.8.8.8 MTU = 1400 [Peer] # Routers public key from VPN>>General Setup>>Wireguard PublicKey = djtc/NmT5ncH6pYHxmnIjdrIvjLbgF2mw38oxAb+Izk= # As generated in VPN>>Teleworker VPN>>[USER]>>Teleworker VPN> PresharedKey = yHIgVcwG8wJRasuV8d5zg1OMqLV1tnpz1eo60Yjh/1s= # Specify the remote networks you want this connection to be able to reach AllowedIPs = 192.168.60.0/24 # Draytek WAN address and listening port number Endpoint = 101.13.0.178:51820 # Keepalive keeps the connection active PersistentKeepalive = 60
